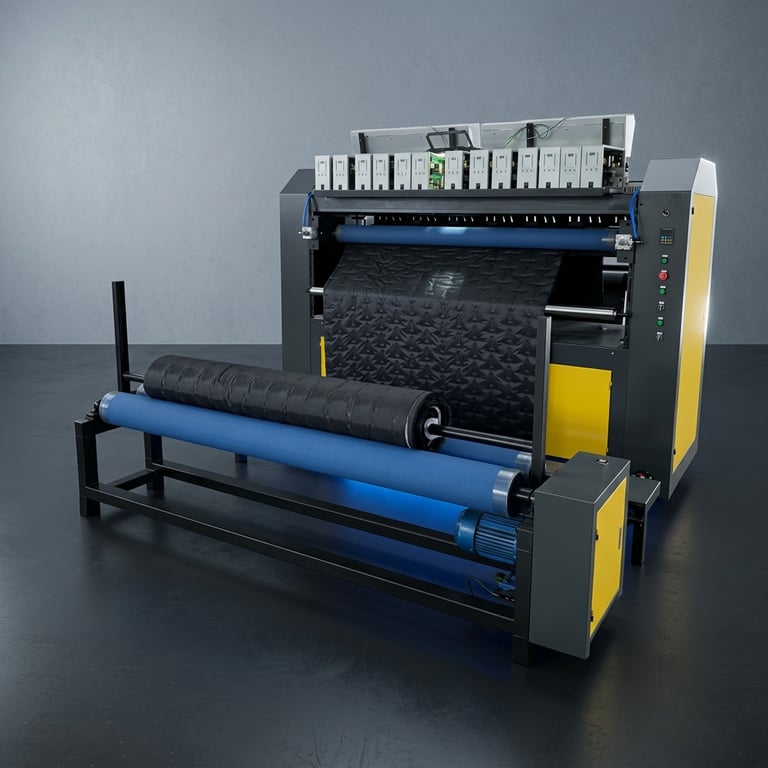

Cross Ultrasonic Quilting Machine

Product Overview

The Cross Ultrasonic Quilting Machine is a high-performance, needle-free bonding system designed for quilting, embossing, and laminating multi-layer thermoplastic materials. Using advanced ultrasonic technology, it delivers fast, clean, and durable bonding results, making it ideal for modern automated production lines.

This machine is widely used in industries such as automotive, home textiles, garments, medical products, and packaging.

Working Principle

The system uses an ultrasonic generator to produce high-frequency electrical signals, which are converted into mechanical vibrations through a transducer. These vibrations are transferred to the material layers via a patterned roller mold.

Under pressure, the المواد generate frictional heat at the molecular level, causing instant melting and fusion. This enables seamless bonding without needles, threads, or adhesives.

Key Features

✔ High-Speed Production

• 5–10 times faster than traditional sewing

• Continuous operation with stable output

• Customizable working width

✔ Needle-Free & Eco-Friendly

• No needle breakage risk

• No glue, no smoke, no pollution

• Safe and environmentally friendly production

✔ Premium Finish Quality

• Strong bonding without seam failure

• Clear embossing with 3D texture effect

• High-end appearance for finished products

✔ Flexible Pattern Design

• Easy roller mold replacement

• Supports complex and customized patterns

• Ideal for continuous and symmetrical designs

• Material Feeding System (Optional)

  Automatic Intelligent Feeding System

  • Infrared edge alignment (EPC system)

  • Ensures precise layer positioning

  • Reduces material waste and improves consistency

  Standard Feeding System

  • Manual frame-type material rack

  • Cost-effective solution

  Interlocking Ultrasonic Welding

  • Dual-row ultrasonic welding heads

  • Minimizes visible seam marks

  • Improves bonding uniformity and aesthetics

Applications

Automotive

• Car covers, seat covers, protective tarpaulins

Luggage & Bags

• Suitcases, handbags, storage bags

Garments & Footwear

• Jackets, children's clothing, shoe materials

Home Textiles

• Mattresses, bed covers, curtains, tablecloths

• Baby pads, wardrobe organizers, cushion covers

Industrial & Medical

• Nonwoven fabrics, hygiene products

• Anti-slip mats, protective materials

Lamination & Embossing

• Thermoplastic films and coated fabrics

• Decorative and functional textile materials

Why Choose Our Ultrasonic Quilting Machine

• Increase production efficiency by up to 10x

• Reduce labor and material costs

• Achieve consistent, high-quality output

• Support automation and smart manufacturing
